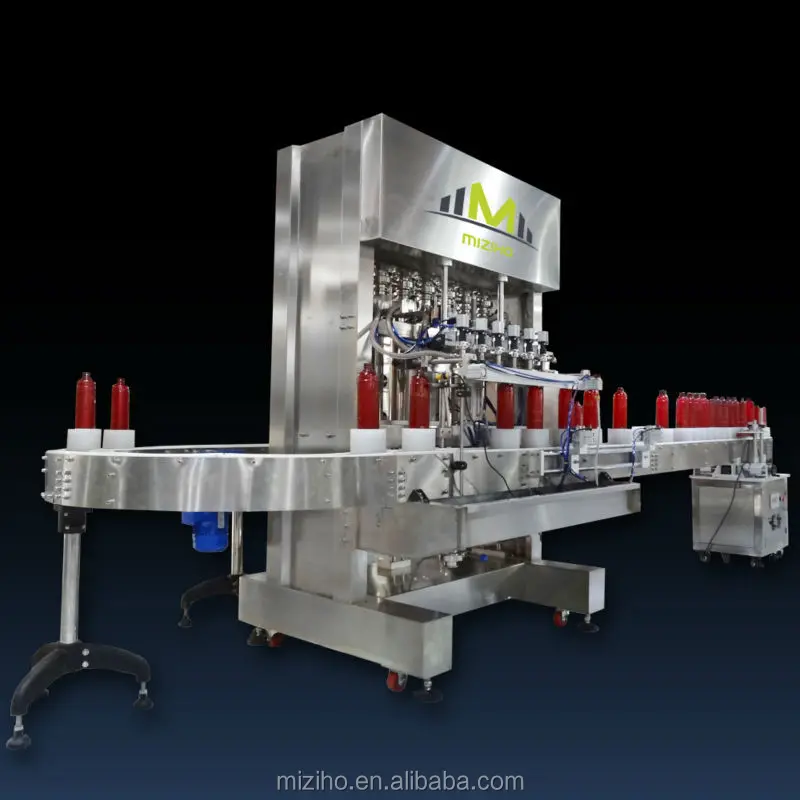

MZH-F automatic 8 nozzles filling machine for lotion,shampoo, liquid,paste material

FOB Reference Price:Get Latest Price
$14,500.00 - $20,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
MZH-F
Report Suspicious Activity
Overview
Quick Details
Packaging Type:
Bottles
Packaging Material:
Glass
Type:
Filling Machine
Condition:
New
Application:
Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V/380V
Power:
1.5kw, 220V/380V
Place of Origin:
Guangdong, China
Brand Name:
MIZIHO
Dimension(L*W*H):
2200X2100X2200MM
Weight:
350kg
Certification:
CE ISO SGS
Pneumatic:
Beverage, Chemical, Commodity, Food, Medical
2200X2100X2200MM:
Engineers available to service machinery overseas
filling nozzles:
customised
Feeding material:
Automatic level sensor
1.5kw, 220V/380V:
Guangdong, China (Mainland)
Warranty:
2years
filling speed:
2500-3500bottles per minute
Stainless steel:
Contact material 316L, others 304SUS
Piston brand:
Taiwan airtac
Control padel:
Siemens PLC
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
300 Set/Sets per Year
Packaging & Delivery
Packaging Details
Strong plywood case
Port
GuangZhou
Lead Time :
Shipped in 45 days after payment
Product Description



MZH-F  automatic 8 nozzles filling machine for lotion, shampoo, liquid, paste material


I.Manufacture Parts

it adopts electric company of world famous brands,the cylinder adopts FESTO brand and magenetic swith , and japan Mitsubishi Or Taiwan Delta PLC computer and Germany DELIXI or Schneider Electric. Contact with material with SUS 316L Stainless steel.

II.Features:

1,the machine can be conveniently maintained. itcan be easily disassembled asssembled and cleaned without the need of using any tools, the adjustment is convenient, when adjusting the metering ,first adjust the value to be near the metering at a wide range ,then make the fine adjustment, ti can realize accyrate metering and make sure no filling is made in case of on bottle or bottle shortage.

2,the filling systerm of the machine adopts the ferrule type quick installed sanitary connector, the whole cylinder can be easilr disassembled, assembled and cleaned without the need of using any tools, it is featured by simple structure design and convenient operation and maintenance.


III.TECHINCAL SPECIFICATIONS
Model MZH-8G
Filling Range 200-2000 (ml)
Bottling Speed 30-80 (B/MIN)
Accuracy Of Gauge ±15g
Nominal Power 0.75 (kw)
Working Voltage 220V
Working Pressure 5~7(kg/cm)
Gas Consumption 0.5 (m3/min)
Net Weight 650kg
Overall Dimension 3000×870×1700mm


IV.Technical parameter

Filling volume(ml) Productivity(b/h) Filling speed Filling precision Air supply
10-50 1500-3500 adjustable ≤ ± 1% 0.4-0.8mpa
80-300 1500-3000 adjustable ≤ ± 1% 0.4-0.8mpa
100-500 1500-2500 adjustable ≤ ± 1% 0.4-0.8mpa
300-1000 1500-2500 adjustable ≤ ± 1% 0.4-0.8mpa
1000-5000 1000-2000 adjustable ≤ ± 1% 0.4-0.8mpa
